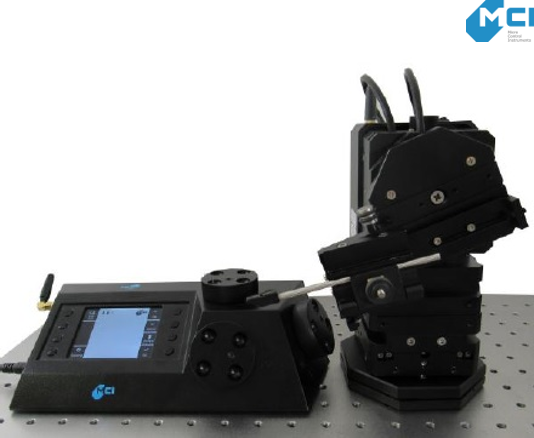

Wireless Control Micromanipulator

The CleverArm is the first wifi-controlled motorised micromanipulator on the market. It is built to highest standards for patch clampers who need absolute reliability, stability and precision.

The wifi control reduces potential problems with wire management around the setup and offers additional control functionality and options for customising the control interface, to suit user preferences.

þ Features

• Easy electrode exchange

• Easy conversion between left- and right-handed configurations on control interface

• Virtual diagonal movement along the axis of the electrode or probe

þ Specifications

• Resolution/Smoothness: 20nm

• Travel Range: 27mm

• Maximum Speed: 2.3mm/s

• Stability: Drift < 0.5 um/hr

• Drive Mechanism: Stepper motors

• Weight: 7.5 kg

• Load Capacity: 500g

• Electrical Noise: Low/no noise
