Electrophysiology Research In Vitro Multiwell-MEA-System

High throughput electrophysiology

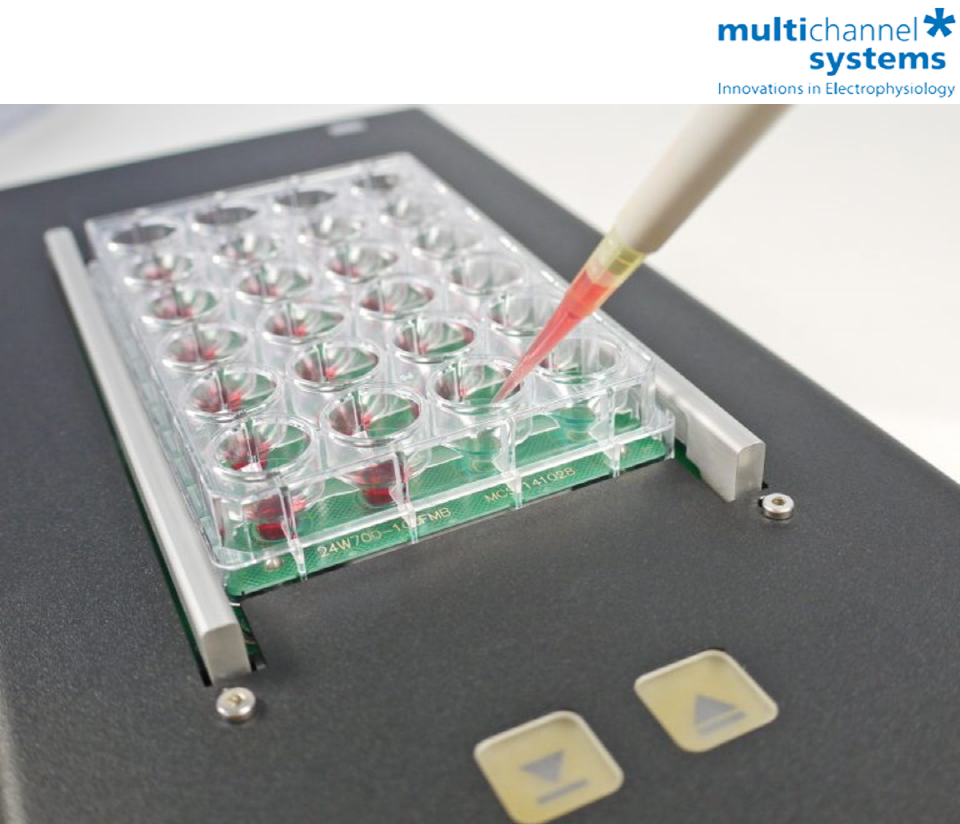

The Multiwell-MEA system is the perfect solution for medium to high throughput in vitro electrophysiology. Featuring a 24- or 96-well plate format, it is especially suited for safety pharmacology and toxicity screenings.


Being based on the MEA2100-technology, it includes high-quality, low-noise amplifiers, and freely-programmable stimulators.

One big advantage of the Multiwell-MEA-System is the high sampling rate. Your data is sampled at up to 50 kHz per channel (simultaneously on all channels). Thus, the accuracy of your data is guaranteed, whether you record from cardiac or neuronal samples.

The data is recorded and analyzed by the included software Multiwell-Screen.

The MEA Xpress can integrate the Multiwell-MEA-System and offers automated liquid handling.

þ Features



24- and 96-well plates

Up to 50 kHz sampling rate

Integrated electrical and optional optical stimulation

Different well plate variants

24 bit data resolution

Available with liquid handling
