Physiology 7700 Series Signal Conditioner (DSI, USA)
1. Universal XE Signal Conditioner | |

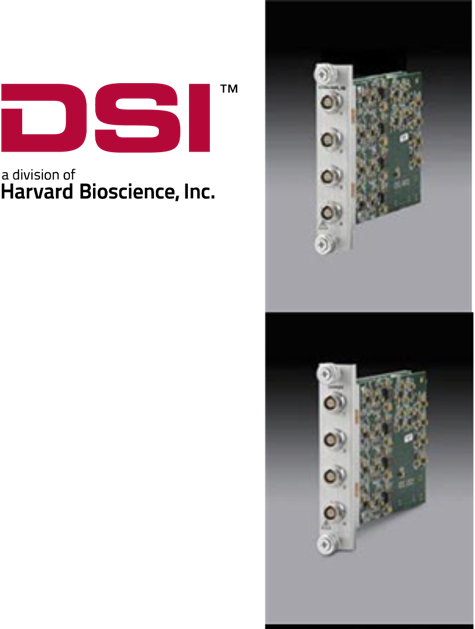

The most versatile of the available signal conditioners is the Model 13-7715-59 Universal XE. The Universal XE signal conditioner, provides an all-purpose or “Universal” input for physiological signals brought into the ACQ-7700 Acquisition Interface Unit. The Universal XE signal conditioner has the ability to handle a wide variety of signals such as bio-potential signals, pulmonary pressure and flow signals, blood pressure and flow signals, tension and isolated tissue signal, temperature signals, and various other inputs. Thus, it eliminates the need to purchase numerous signal conditioners and amplifiers to achieve the same results as just one Universal XE signal conditioner. Additionally, the Universal XE delivers four channels per signal conditioner making it a very cost effective choice. Product Specifications | ![]() |
2. Carrier Signal Conditioner | |
The 13-7715-35 Carrier signal conditioner was designed to marry with the Validyne DP-45 and DP-250 Pressure Transducers for accurate pulmonary pressure, volume and flow measurements. Coupled with the Pulmonary Air Flow (PAF), Pulmonary Compliance and Resistance (PCR), and Unrestrained Plethysmography (URP) software analysis modules, DSI/Ponemah can record and analyze data from virtually any pulmonary application. Product Specifications | ![]() |
3. Digital Communication Module | |
The Digital Communication Module (DCOM) provides a communication link between external pods and the 7700 series chassis. This allows external pods to be placed next to the preparation for ease in manipulating lead placement, while permitting the chassis to remain on the lab bench or rack. This is achieved by using an extended cable to link the external pod to the DCOM module. Product Specifications | ![]() |
4. Advanced Basic DC 4 Signal Conditioner | |
A perfect solution to bringing in a variety of high level signals into the 7700 Series platform is the ABDC 4 Signal Conditioner, model 13-7715-04. This signal conditioner provides a simple connection to the analog output of many laboratory devices. Product Specifications | ![]() |
5. Advanced Basic DC 32 Signal Conditioner | |
The ABDC 32 signal conditioner, model 13-7715-02, allows simultaneous sampling of up to 32 sources at one time from just one module. Utilizing the input terminal box, connections can be made to the amplifier by simple BNC connections allowing for quick input changes. With its ability to take Bi-polar measurements, the signal can be truly maximized over the full scale. In addition to Bi-polar measurements, the data is recorded to 16 Bit resolution yielding extremely high precision. | ![]() |
6. Math Module | |
The 13-7715-09 Math Module utilizes a graphical interface for configuration of user specific math functions. These math functions can be applied to active channels collected from any 7700 series signal conditioner. Examples of the utility of the Math Module would include subtraction of two separate pressure channels, integration of bio-potentials, as well as statistical calculations. Product Specifications | ![]() |
DSI also offers several accessories/options to work with the DSI/Ponemah 7700 Series platform, allowing researchers to collect signals from a broad array of sources. |
