Syringe Pump D-Series Syringe Pumps

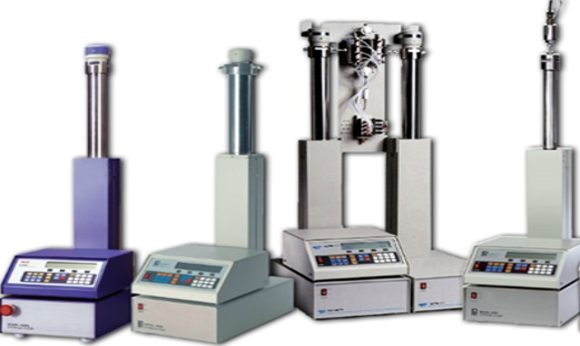

D-Series Syringe Pumps (Teledyne ISCO, USA)
고도의 정밀도로 유량과 압력을 조절할수 있는 무맥동의 Syringe pump 로써 시료를 맥동이 없이 이동시키고 넓은 범위의 온도에서 사용할수 있습니다.
또한 다양한 부식성외 물질들을사용할수 있어 고도의 Quality를 요구하는 실험에 적합합니다.
정밀유량공급제어, 정말압력조절, 반응기에 반응시료 공급, 지질자원 관련 암석연구, 초임계유체 응용, 액체크로마토그래피 펌프등외 다양한 응용범위로 사용가능 합니다
D-Series 실린지펌프는 고압무맥동의 맥동없이 정밀하게 액체및 기체상 시료를 고압으로 이송시키는 정밀펌프입니다.
실린지형태의 플런저를 이용해서 유체의 누출없이 일반펌프에서 실행하기 어려운 미세 흐름의 유체를 일정한 압력이나 일정한 유속으로 변동없이 이송합니다.
본제품을 이용하여 연구나 제조공정에서 정확한 유량제어, 화학물질의 반응공정 및 촉매반응을 위한 반응물 주입, 액화가스의 정확한 계량등에 이용가능합니다.
적용가능한 유체에는 수성및 유기액체, 침식성 용액, 고온의 유체, 액화가스, 점액성 물질, 슬러리등 찌꺼기 물질까지 다양한 유체를 이송가능합니다.
Teledyne Isco Series D single-pump systems consist of a controller and pump module. The piston-driven pump module uses a single speed gear train. Nitronic 50 is the standard material for cylinders, pistons, and caps, with Hastelloy and other alloys available for even greater chemical resistance. Standard seals are graphite-impregnated Teflon, providing long life under harsh operating conditions, with optional seals availale for special applications. The Series D controller offers many different operating modes and features, and we can also customize the software to your specific application on request. The standard operating modes are: -Constant flow |
|
