The NITRO-GEN generator was developed with Organomation’s nitrogen evaporators in mind to provide nitrogen generation for sample concentration. The generator is lightweight and easy to set up, requiring only a source of compressed air to run. This unit is an ideal choice for labs with an in-house compressed air source.

The generator uses a hollow-fiber membrane to convert compressed air to a stream of 95-99% pure nitrogen gas. The hollow-fiber membrane consists of a series of narrow, semipermeable tubes in a porous membrane. As compressed air travels through the fibers, oxygen and water vapor permeate the membrane and are vented off, leaving a steam of high purity nitrogen gas. At up to 99% purity, the resulting nitrogen gas stream can be used in a variety of sample preparation applications.

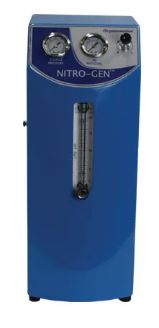

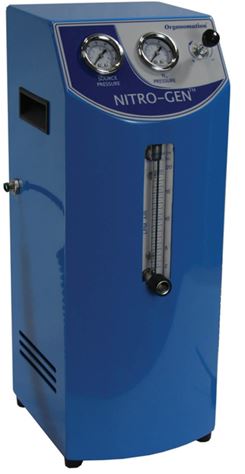

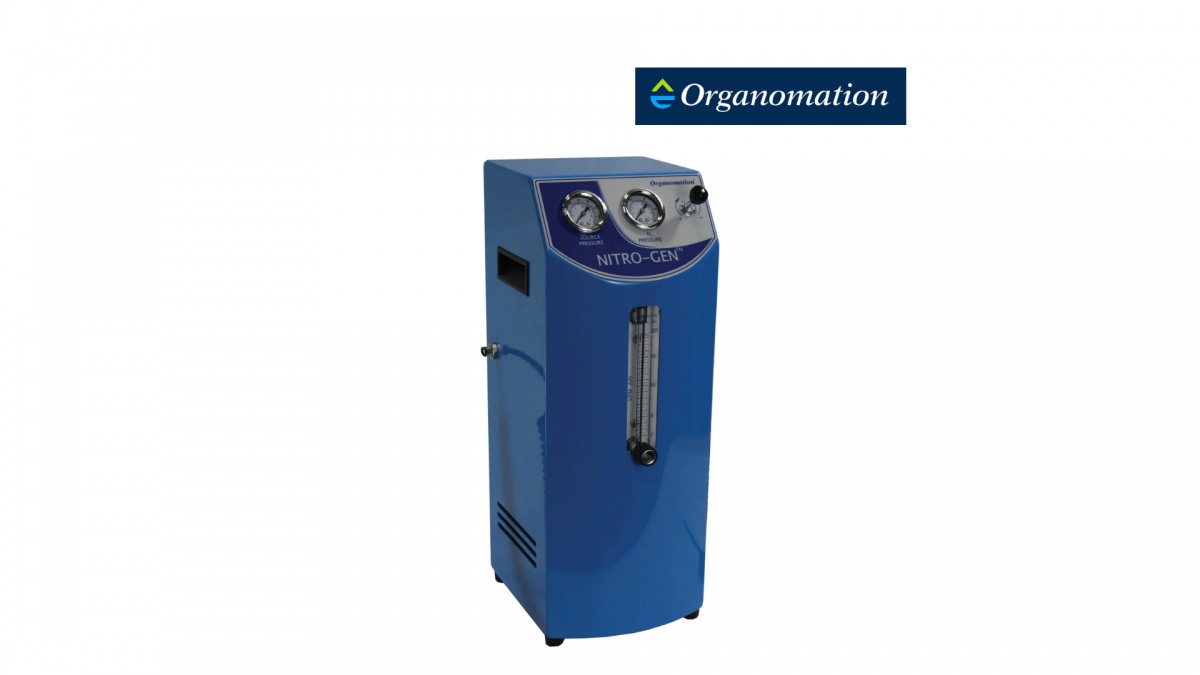

NITRO-GEN

The NITRO-GEN produces up to 20 L/min of nitrogen gas and is recommended for evaporation of up to 48 sample positions.

STANDARD FEATURES

• Adjustable outlet pressure regulator, 0-100 psi

• Dual Stage clean air filtration system

• Requires an oil-less compressed air source

• SPECS

• Instrument Name	NITRO-GEN
  Instrument Catalog Number	NA1955
  Flow Rate	Up to 20 L/min
  Technology	Hollow-Fiber Membrane
  Output Pressure	Adjustable 0 - 100 psi
  Electrical Requirements	None
  Total Wattage	N/A
  Noise Level	Negligible (< 40 dBA when connected to an instrument)
  Overall Dimensions (w x d x h)	9.5 x 8 x 19.5 in 24.1 x 20.3 x 49.5 cm
  Weight	13.25 lbs. 6 kg
  Warranty Term	1 Year

•
